| Brand Name: | Lingyao |
| Model Number: | LYKXGF2-30-I |
| MOQ: | 1 unit |
| Price: | 150,000-300,000USD per piece |
| Payment Terms: | D/A,D/P,T/T,Western Union |
| Supply Ability: | 1 unit per month |

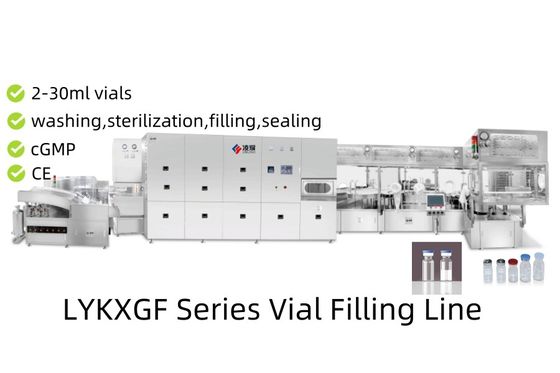

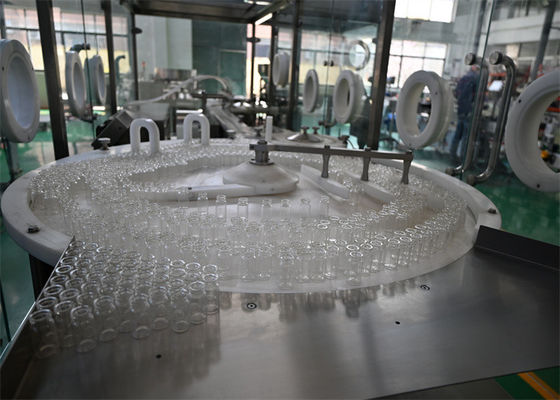

Vial filling line for vaccine production with high capacity and 110KW power, cGMP standard
This vial filling line designed for vaccine production offers high production capacity, which is crucial for meeting the large - scale demand of the vaccine market. With a power of 110kw, this vial filling line ensures efficient and stable operation. The vial filling line is equipped with advanced technology to guarantee the safety and quality of vaccines during the filling process. It features high - precision dosing systems to ensure each vial contains the correct amount of vaccine. This vial filling line is an ideal choice for vaccine manufacturers aiming to improve production efficiency and product quality.
Vial Filling Line series Spec:
| Model | LYQCL80+LYASMR620/48+LYKGF8 | LYQCL1000+LYASMR620/48+LYKGF10 | LYQCL120+LYASMR620/55+LYKGF12 |
| Adaptive Spec | 2-30ml national standard vials | 2-30ml national standard vials | 2-30ml national standard vials |
| Capacity | 6000-12000pcs/hr | 6000-18000pcs/hr | 6000-26000pcs/hr |
| Clarity | >99% | ||
| Breakage rate | <0.5% | ||
| Filling Torlerance | 1.5 % | ||
| Fresh Water consumption | 0.2-0.4Mpa/0.6-1.0 m3/hr | ||
| Clean compressed air consumption and pressure | 0.3-0.6Mpa/35-80 m3/hr | ||
| Pass rate of stopping | > 99% | ||
| Pass rate of capping | > 99% | ||
| vacuum pumping speed | 60m3/h(external distribution) | ||
| Exhuast volume | 3500-4800m3/h | ||
| Weight | 9300 KGs | ||
| Total Power | about 90kw 380v 50Hz | about 93kw 380v 50Hz | about 110kw 380v 50Hz |
| Size | about 12600 X 2260 X 2445mm | about 12600 X 2260 X 2445mm | about 13200 X 2260 X 2445mm |
The vial filling line features a Grade A/ISO 5 cleanroom-compatible design, utilizing advanced peristaltic pumps and laser-guided dosing systems to achieve ±0.5% filling accuracy—essential for sensitive vaccines like mRNA-based formulations.
Key advantages include:
The vial filling line integrates real-time weight verification and vision inspection, ensuring 100% dosage consistency and vial integrity. Trusted by Lingyao Group, this solution accelerates vaccine accessibility without compromising safety or precision.
